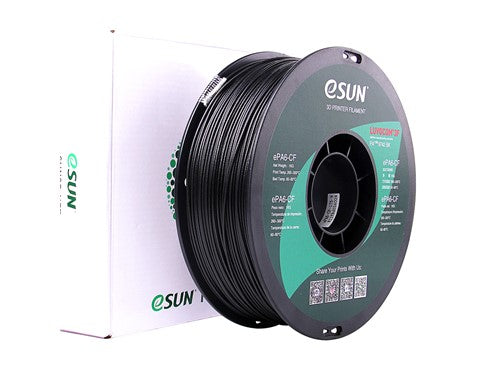

ePAHT-CF (ePA6-CF) Carbon Fiber Filled Nylon eSun filament

คำอธิบาย

 ePAHT-CF eSun Filament
Nylon 6 Carbon Fiber Filled Nylon eSun filament
Weight (0.75 KG)

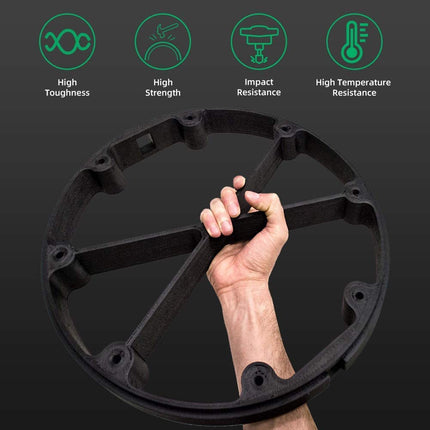

ePAHT-CF (nylon carbon fiber) is a material jointly developed by eSUN and LUVOCOM. Compared with PA66, the size and electrical properties of ePAHT-CF are less affected by humidity and temperature. The strength of ePAHT-CF is higher than other eSUN nylon series products. The surface of the printed items is matte and fine. On the basis of the performance of PA6, 15% high-rigidity carbon fiber is added, high-strength, high-rigidity, impact resistance, self-lubricating and abrasion resistance, excellent chemical resistance, high temperature resistance, the continuous use temperature of the parts can reach 150°C, and the short-term use temperature can reach 180°C. It can be detected by metal detector (≥ 2 mm³). The  strip electrode insulation resistance and surface resistance are less than 102Ω. It can be used as a conductive and antistatic material. Compared with pure nylon, the shrinkage rate and water absorption rate are greatly reduced. The printed model has high dimensional stability, good mechanical performance, good interlayer bonding, excellent printability, low distortion, no warping, and no chamber or bed heat is required.

Note

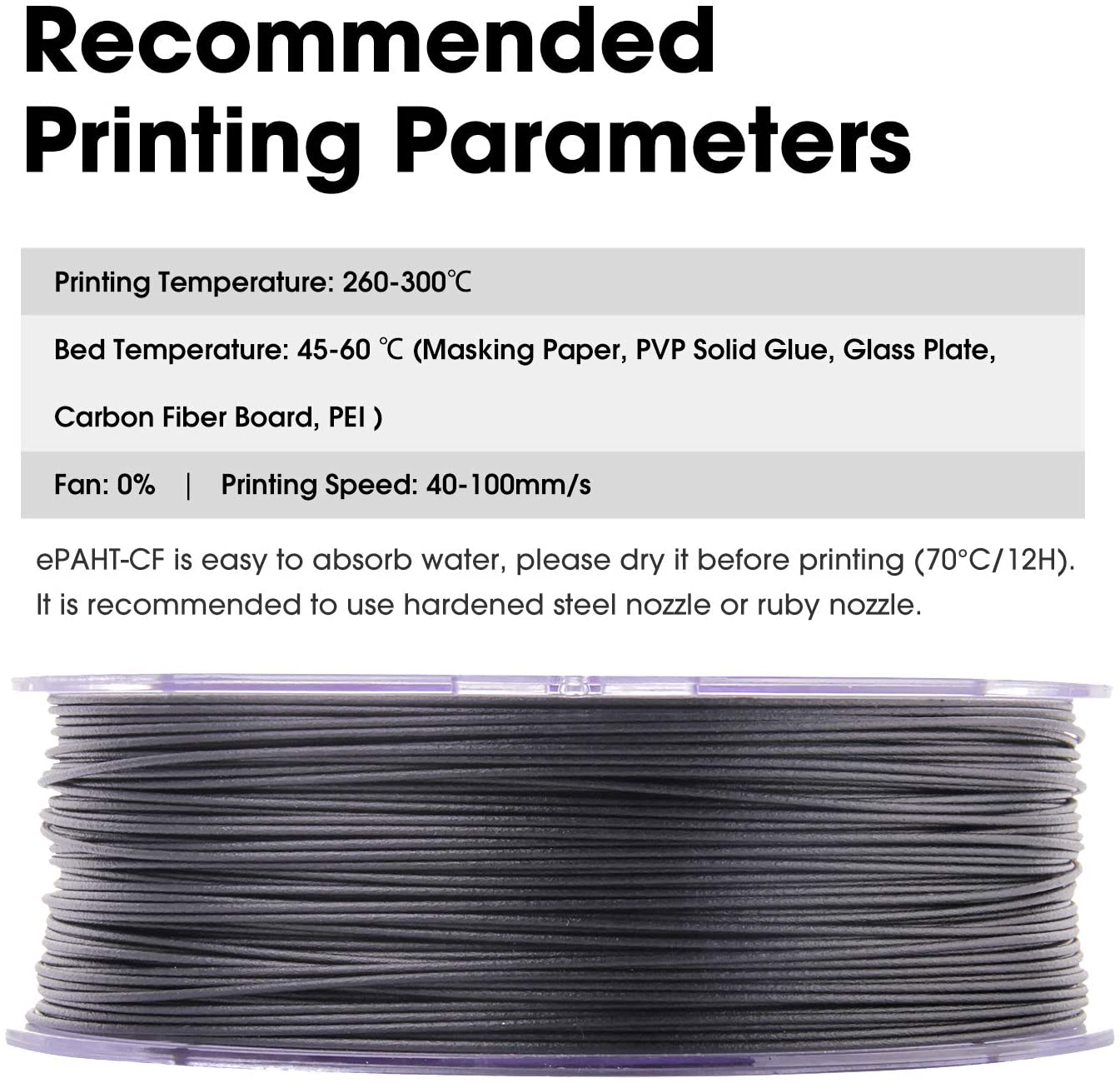

1. ePAHT-CF needs to be dried (70℃, ＞12H) before printing to achieve the best printing effect. It is recommended to use it with the eBOX cartridge when printing.
2. The ePAHT-CF line has strong rigidity and is not easy to bend. In the feeding pipe, excessive bending of the wire should be avoided as much as possible.
3. ePAHT-CF is very easy to grind nozzles and extruder gears. It is recommended to use hardened steel nozzles or ruby nozzles. If conditions permit, you can choose hardened steel extruder gears. If the printing time is long, you need to replace the throat and nozzles.
4. It is recommended to set the skirt to make it better for taking the model from the forming plate.


รูปแบบสินค้า
รับสินค้าที่ร้าน สถานที่

2,249.00 ฿

  • ส่งวันนี้? สั่งซื้อภายใน: May 06, 2024 11:00:00 +0700
  • Fast Delivery

เพิ่มเพื่อน



คำอธิบาย

 ePAHT-CF eSun Filament
Nylon 6 Carbon Fiber Filled Nylon eSun filament
Weight (0.75 KG)

ePAHT-CF (nylon carbon fiber) is a material jointly developed by eSUN and LUVOCOM. Compared with PA66, the size and electrical properties of ePAHT-CF are less affected by humidity and temperature. The strength of ePAHT-CF is higher than other eSUN nylon series products. The surface of the printed items is matte and fine. On the basis of the performance of PA6, 15% high-rigidity carbon fiber is added, high-strength, high-rigidity, impact resistance, self-lubricating and abrasion resistance, excellent chemical resistance, high temperature resistance, the continuous use temperature of the parts can reach 150°C, and the short-term use temperature can reach 180°C. It can be detected by metal detector (≥ 2 mm³). The  strip electrode insulation resistance and surface resistance are less than 102Ω. It can be used as a conductive and antistatic material. Compared with pure nylon, the shrinkage rate and water absorption rate are greatly reduced. The printed model has high dimensional stability, good mechanical performance, good interlayer bonding, excellent printability, low distortion, no warping, and no chamber or bed heat is required.

Note

1. ePAHT-CF needs to be dried (70℃, ＞12H) before printing to achieve the best printing effect. It is recommended to use it with the eBOX cartridge when printing.
2. The ePAHT-CF line has strong rigidity and is not easy to bend. In the feeding pipe, excessive bending of the wire should be avoided as much as possible.
3. ePAHT-CF is very easy to grind nozzles and extruder gears. It is recommended to use hardened steel nozzles or ruby nozzles. If conditions permit, you can choose hardened steel extruder gears. If the printing time is long, you need to replace the throat and nozzles.
4. It is recommended to set the skirt to make it better for taking the model from the forming plate.
