Description

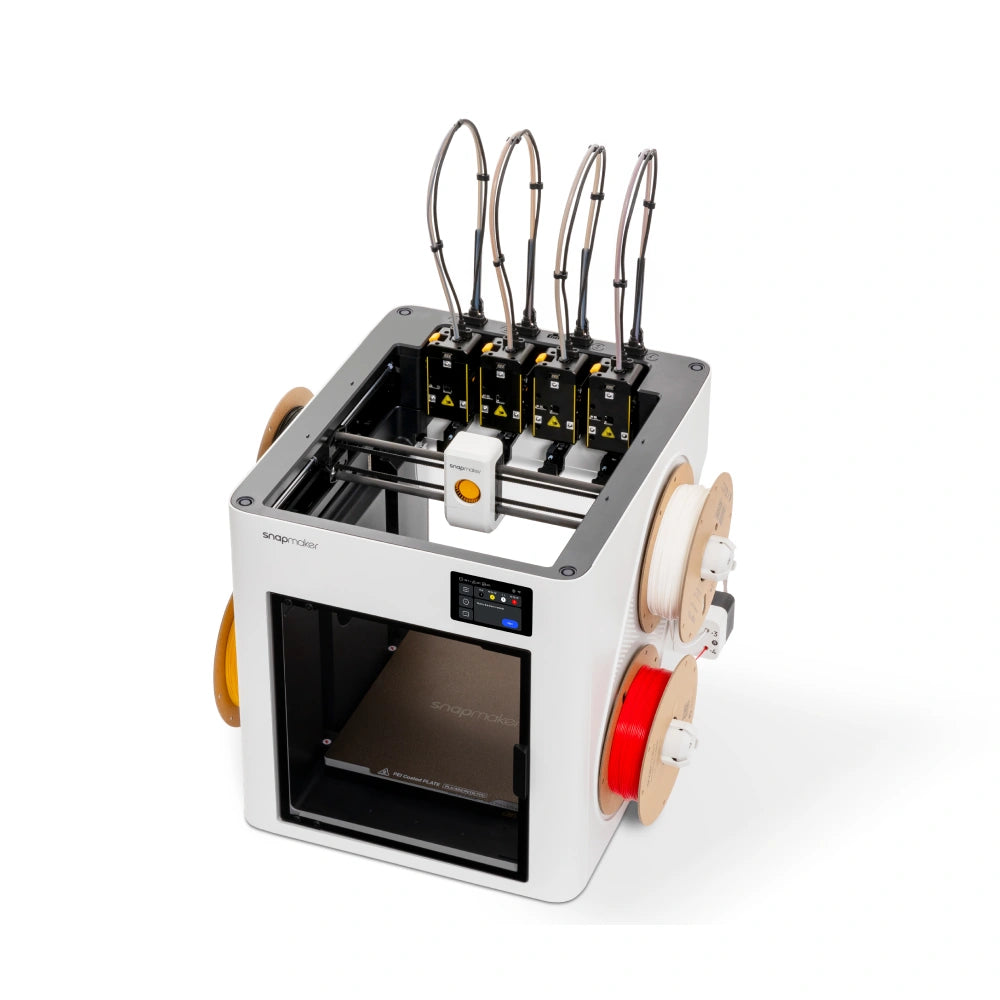

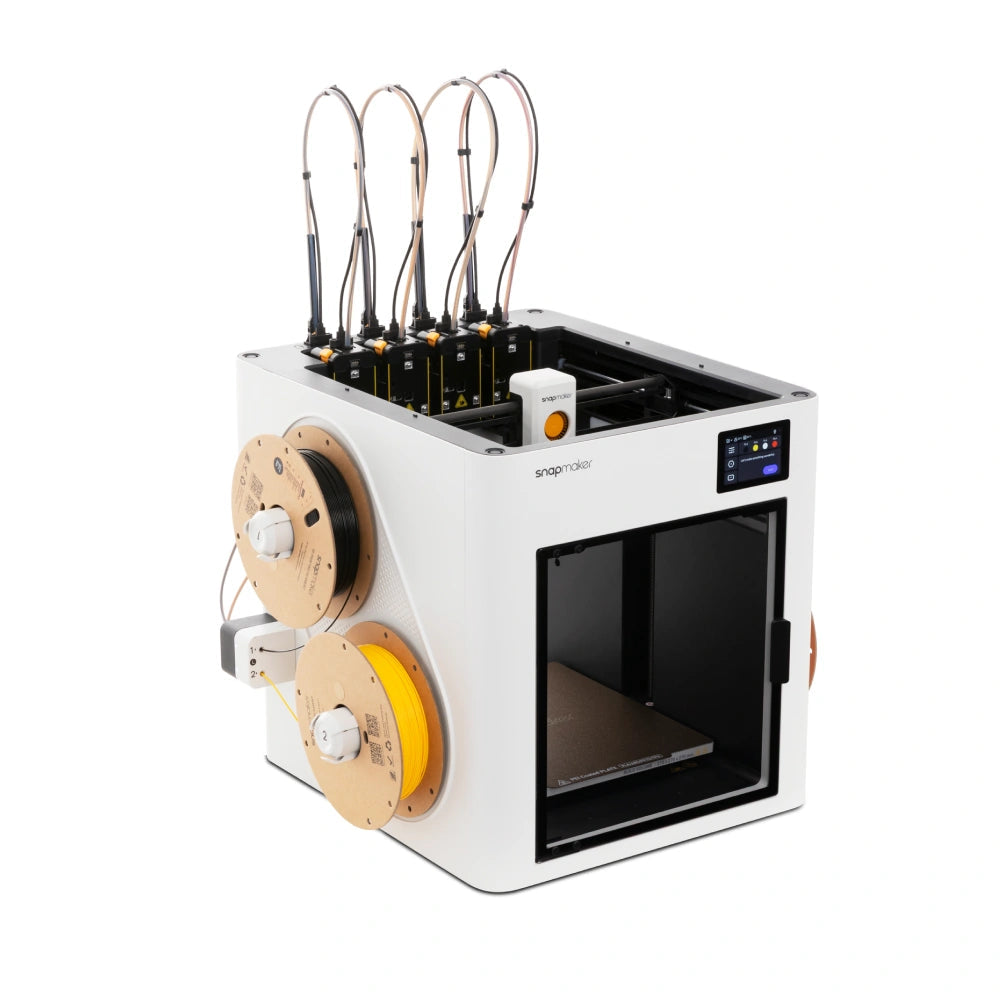

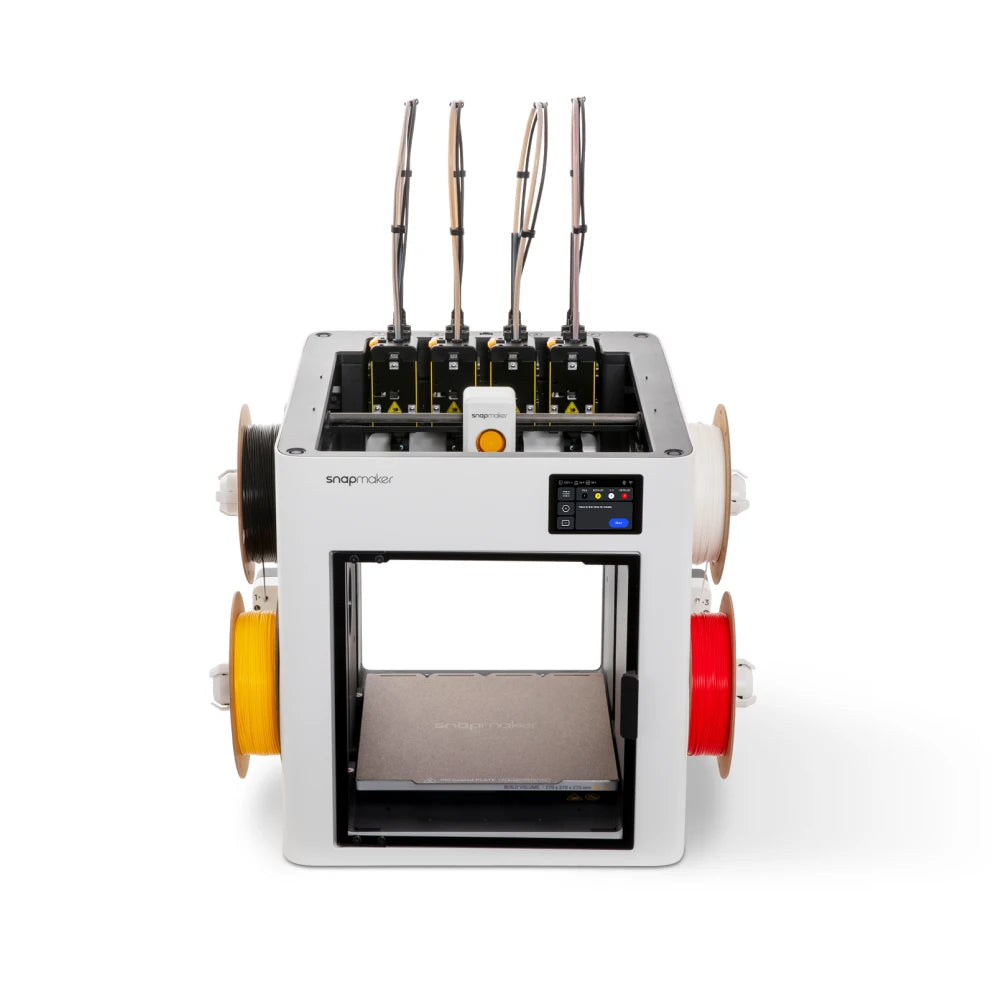

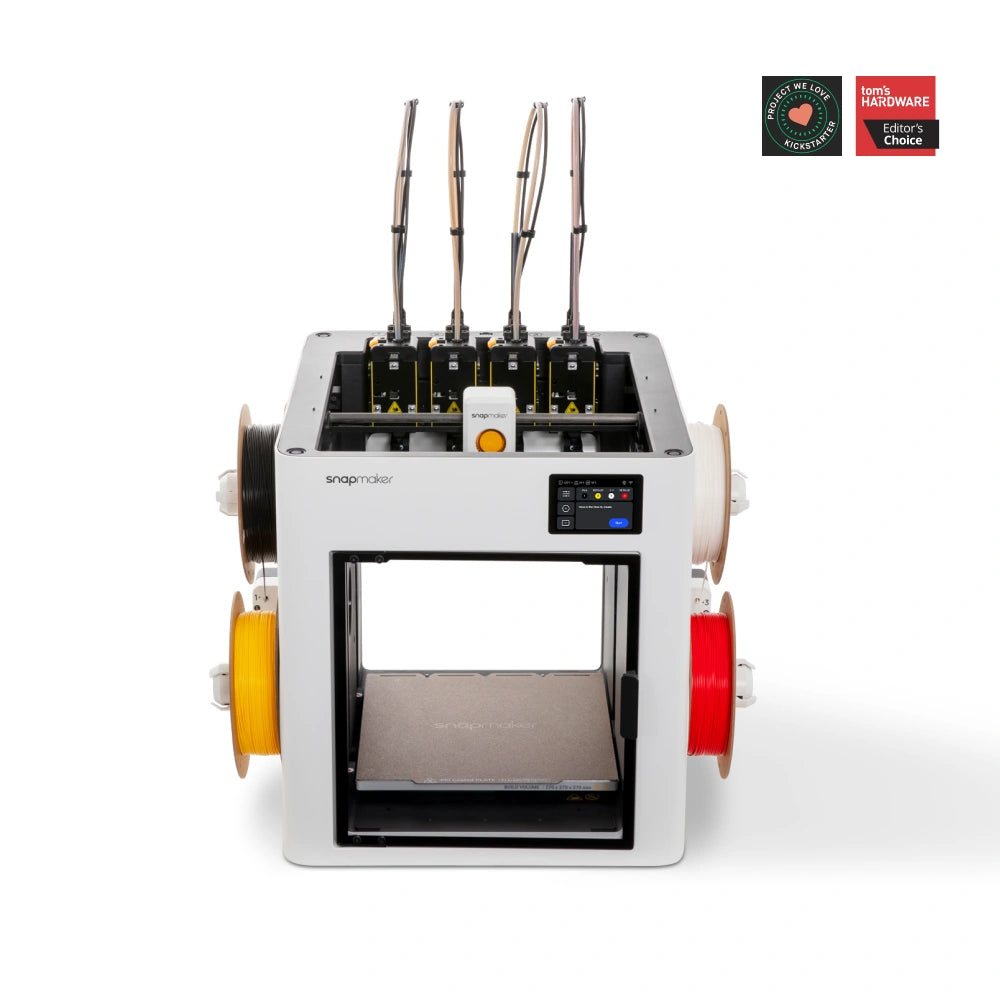

Snapmaker U1 – Faster Multicolor 3D Printing, Less Material Waste
The Snapmaker U1 is an FDM 3D printer featuring four toolheads in one machine, designed to address classic multi-color printing issues: time wasted purging and excessive material waste. With its SnapSwap™ toolhead switching system, the machine can transition from one color to another in approximately 5 seconds, compared to typical filament-changing systems that often take around 2 minutes per color switch. The result is faster multi-color printing and a reduction in purge waste by up to 80%.
Key Features
-
SnapSwap™ Toolhead Switching System: All four toolheads are pre-heated simultaneously and lock into position with a precise, screw-free, magnet-free kinematic coupling system using steel balls. Tested for over 1,000,000 toolhead switches without failure.
-
Multi-Material Printing in a Single Job: With four independent extruders, materials can be freely combined. For example, pair PETG or PVA as easy-to-remove supports, or integrate flexible TPU with rigid PETG/PLA in the same print.
-
High Speed with CoreXY Structure: The X-axis rail is made of lightweight yet strong carbon fiber, supporting a maximum print speed of 500 mm/s and acceleration of 20,000 mm/s². Features a print volume of 270 x 270 x 270 mm.
-
Comprehensive Auto-Calibration System: Calibrates the XYZ position of each toolhead to within 0.04 mm. Includes Input Shaping to reduce vibration, Pressure Advance to control filament flow, and Mesh Bed Leveling for automatic print bed adjustment, ensuring smooth and accurate print surfaces.
-
Automated Filament Management System: Supports up to 4 filament spools simultaneously. Features automatic loading (Auto-loading), an automatic backup mode that switches to a new spool when the current one runs out (Backup Mode), and an RFID reading system for Snapmaker filaments.
-
Intelligent Anomaly Detection: Over ten sensors and a 2MP chamber camera detect issues during printing, such as filament runout, power outages, or toolhead switching problems, and alert users via app and software.
-
Easy Control via Software and App: Compatible with Snapmaker Orca (based on OrcaSlicer) and the Snapmaker app for remote printing, status monitoring, and time-lapse recording. Features a built-in 3.5-inch touchscreen and connects via Wi-Fi or USB.
Specifications Summary
| Printing Technology |
FDM (Fused Deposition Modeling) |
| Number of Toolheads |
4 Toolheads with 1 Spare Hotend |
| Print Volume |
270 x 270 x 270 mm |
| Max Print Speed |
500 mm/s |
| Max Acceleration |
20,000 mm/s² |
| Nozzle |
0.4 mm Stainless Steel, Max Temperature 300°C |
| Heated Bed |
Textured PEI Spring Steel Sheet, Max Temperature 100°C |
| Supported Materials (Standard) |
PLA, PETG, TPU, PVA, PCTG |
| Supported Materials (with Optional Top Cover) |
Additional PET, ABS, ASA, PA, PC |
| Display |
3.5-inch Touchscreen, 320 x 480 Resolution |
| Connectivity |
Wi-Fi (2.4GHz), USB Flash Drive |
| Internal Storage |
26GB eMMC |
| Chamber Camera |
2 Megapixels |
| Firmware |
Klipper |
| Supported Software |
Snapmaker Orca, OrcaSlicer / Android App, iOS App |
| Machine Dimensions |
584 x 499 x 730 mm |
| Machine Weight |
18.2 kg |
Product and Main Component Warranty Period
Printer Warranty Period: 1 Year Warranty
U1 3D Printer (excluding limited warranty parts and consumable parts)
Limited Warranty Parts Period: 3 Months
- Nozzles/Extruders (excluding extruder gears)
- Filament Holders
Consumable Parts Period: No Warranty
- Hotend parts (nozzle, ceramic heater, thermistor, cooling fan, hotend casing)
- Extruder gears, PEI sheet, filament tube, filament tube connector
- 3D printing filament, waste bin
- Nozzle wiping pad and nozzle cleaning brush
- Included tools (scraper, nozzle cleaning needle, etc.)
- Air purifier (integrated into the top cover)

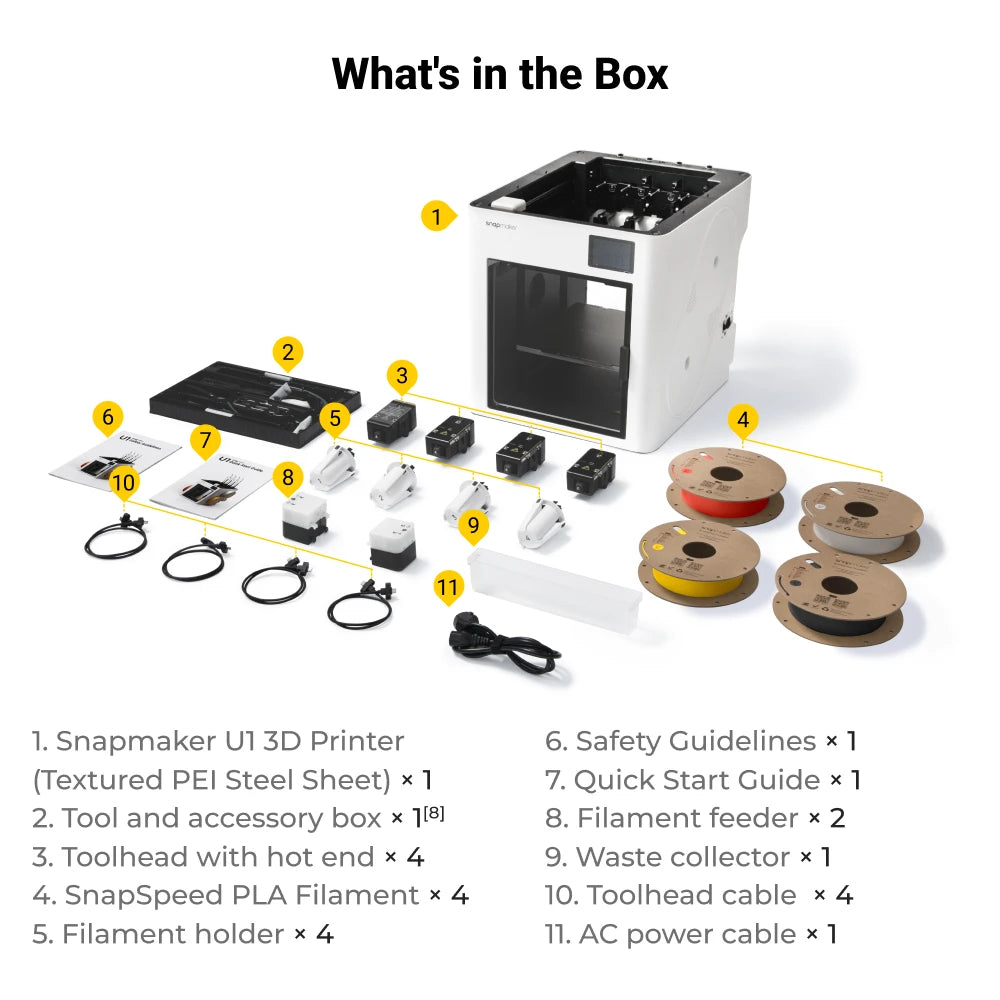

In the Box
- Snapmaker U1 3D Printer (with Textured PEI Plate) x 1
- Toolbox and Accessories x 1
- Toolhead with Hotend x 4
- SnapSpeed PLA Filament x 4 spools
- Filament Holder x 4
- Safety Guide x 1
- Quick Start Guide x 1
- Filament Feeder x 2
- Waste Bin x 1
- Toolhead Cable x 4
- AC Power Cord x 1
Note: Performance figures (speed, % waste reduction, accuracy) are based on internal testing by Snapmaker Lab under specific conditions. Actual results may vary depending on material, print size, and print settings.
Print Your Own Accessories
Learn More About Snapmaker U1

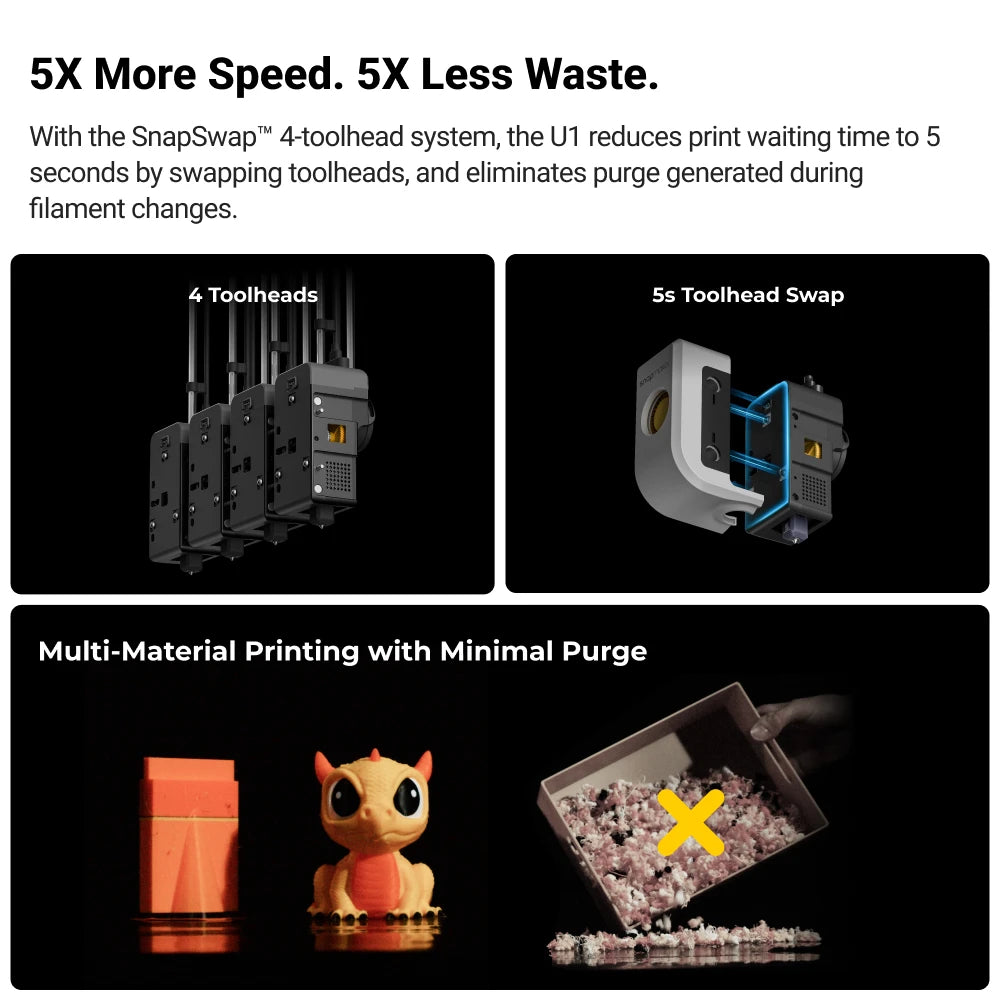

Switch Filaments in 5 Seconds with SnapSwap™
Typical 3D printers using a filament changer system often spend more time purging the old color from the nozzle than actually printing. But with 4 hotends that are pre-heated and have their own filament ready, the U1's SnapSwap™ system allows it to switch colors or materials simply by swapping the toolhead, reducing waiting time from about 2 minutes to approximately 5 seconds per switch.
Virtually No Purge When Changing Colors
Filament-changing systems must "purge" or push out all of the old filament before starting a new color, leading to wasted usable material. The U1, however, only purges a small amount of genuinely degraded material at the start of a print or during flow rate calibration, reducing waste by up to 80% on every print.
Precise and Robust Locking with Kinematic Coupling
The U1 uses a steel-ball kinematic coupling system to precisely secure each toolhead in place, without relying on screws, magnets, or additional motors. It has been tested for over 1,000,000 toolhead switches without failure.
Save Material, Save Money, Save the Environment
Multi-color printing on conventional printers often creates a large amount of filament waste, sometimes wasting 3-4 times more material than is actually in the final print. With its intelligent toolhead switching system, the U1 significantly reduces this waste, saving both filament and long-term costs.
Freely Combine Materials with 4 Extruders
With four independent extruders, users can freely pair materials as desired. For example, use PETG or PVA as easy-to-remove supports without damaging the print, or integrate flexible TPU with rigid PETG/PLA to create prints with both flexibility and strength in one piece. This is ideal for items like 3D-printed bags or custom-designed footwear.

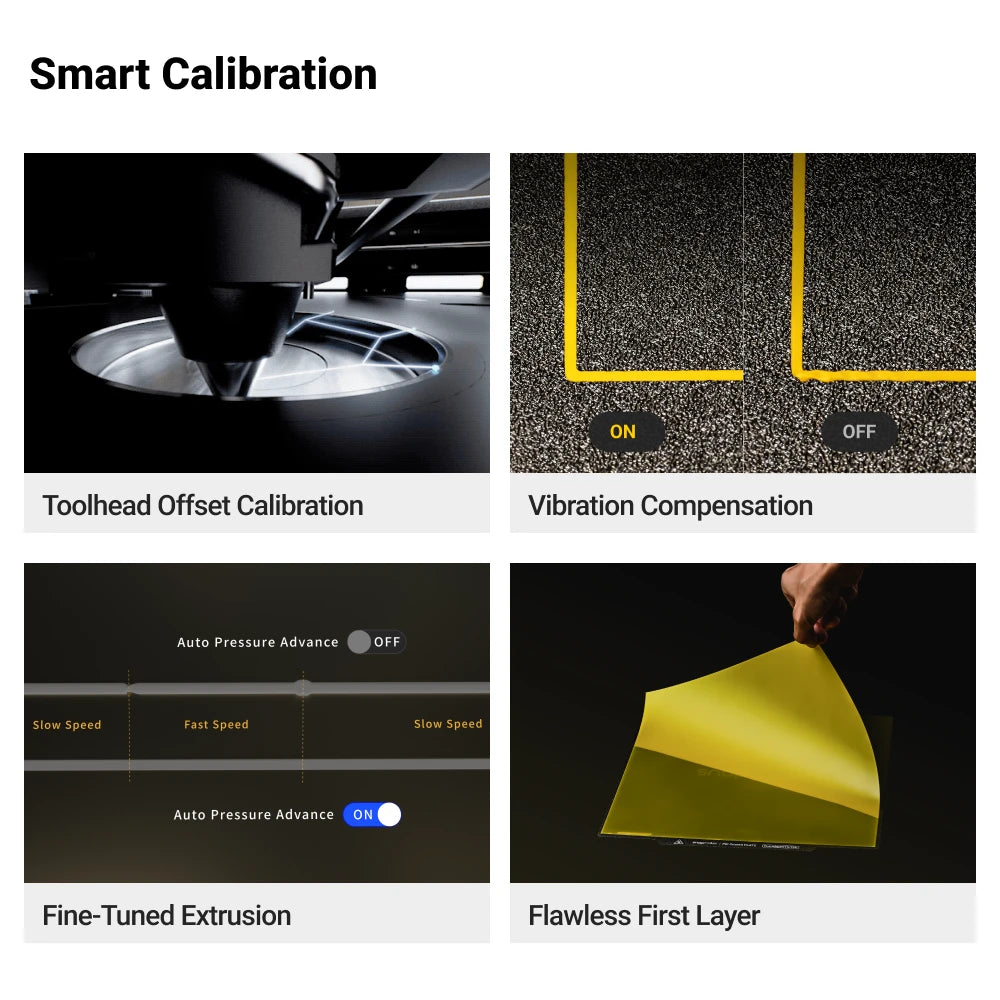

Auto-Calibration for Millimeter-Level Accuracy
With four high-speed toolheads, precision is essential. The U1's automatic compensation system adjusts each toolhead's position to within 0.04 mm. It reduces vibrations with Input Shaping, working with an accelerometer. It adjusts filament flow timing with Pressure Advance to prevent over-extrusion or underextrusion, and automatically levels the print bed with Mesh Bed Leveling, ensuring a smooth and consistent first layer.

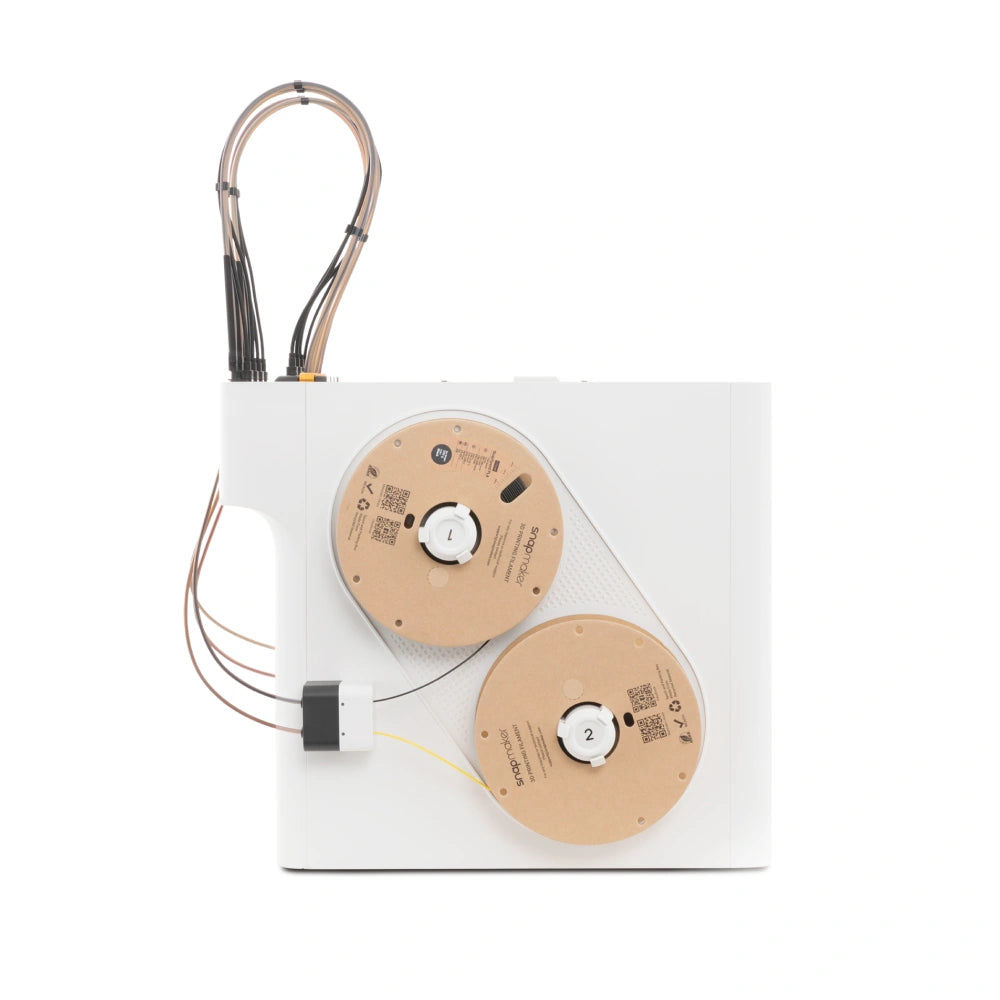

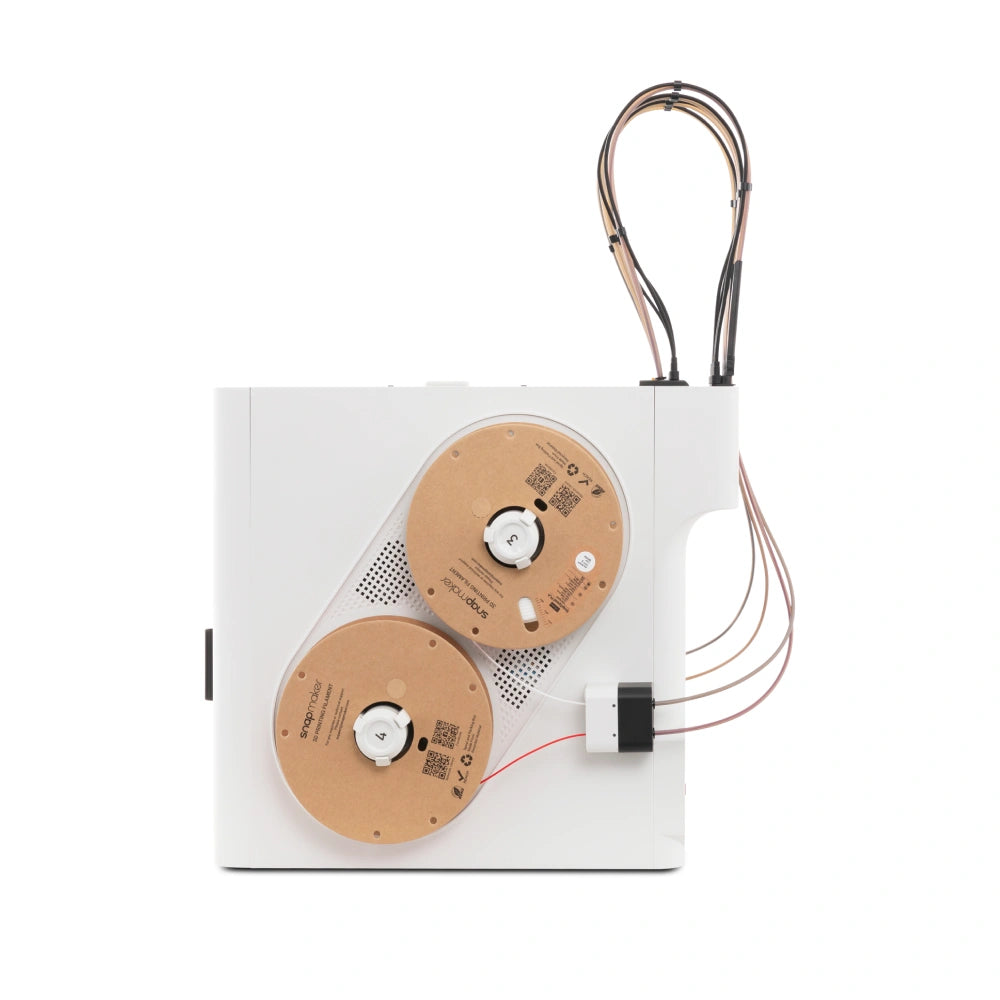

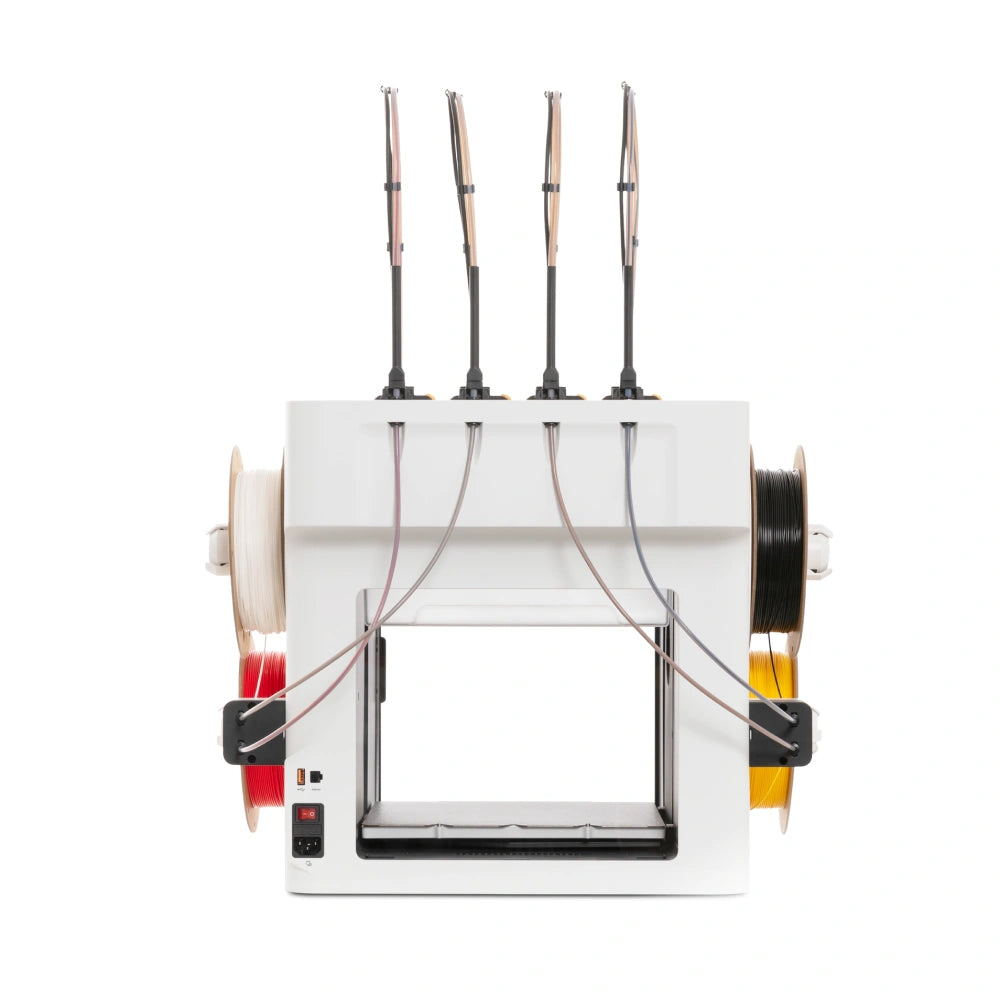

Easy-to-Use Automated Filament Management System
The U1 comes with a compact automatic filament management system. It supports up to 4 filament spools simultaneously, covering everything from automatic loading (Auto-loading) that eliminates manual threading to a Backup Mode that automatically switches to a backup spool when the current one runs out. The RFID Recognition system automatically reads the color, type, and properties of Snapmaker brand filaments, eliminating manual data entry.

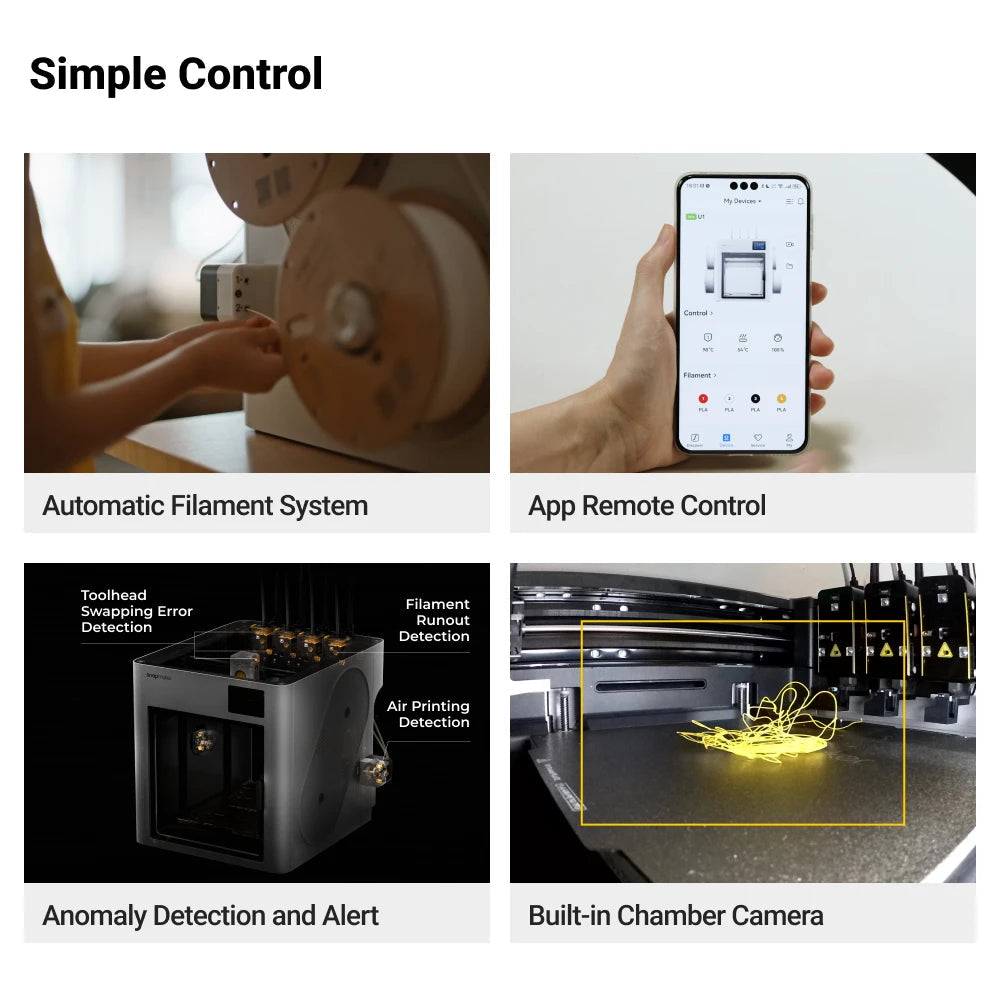

Control and Monitor Prints from Anywhere
Snapmaker Orca software, built upon the OrcaSlicer engine, provides tested print profiles for Snapmaker materials and machine models. Used with the Snapmaker app, users can start, monitor, and control prints from anywhere. It also allows recording time-lapse videos to review the print creation process. Additionally, there's a 3.5-inch touchscreen on the machine for direct control.
Intelligent Anomaly Detection Prevents Print Damage
With over ten sensors working with precisely engineered mechanisms, the U1 can detect printing issues and automatically suggest solutions. Furthermore, the chamber camera does more than record time-lapses; its AI system helps detect problems like filament tangles (spaghetti) or obstructions in the print area, alerting users via Snapmaker Orca or the app to reduce the risk of wasted time and material.

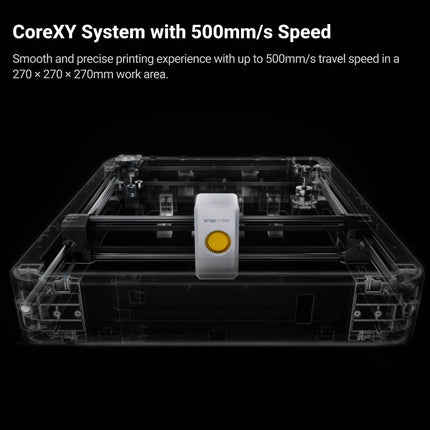

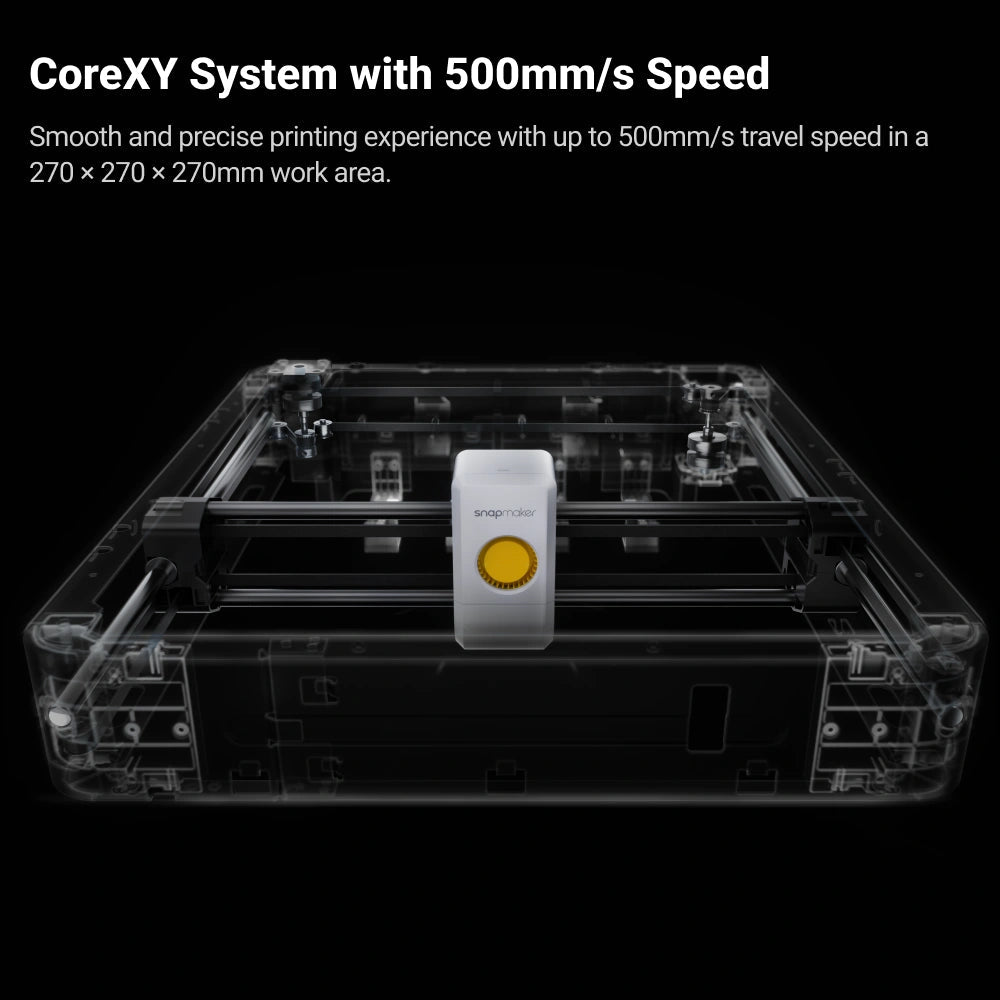

500 mm/s Speed with CoreXY Structure
The U1 is built on a CoreXY motion structure with an X-axis rail made of lightweight yet strong carbon fiber. It delivers print speeds of up to 500 mm/s while maintaining long-term accuracy across its 270 x 270 x 270 mm print volume.
