Description

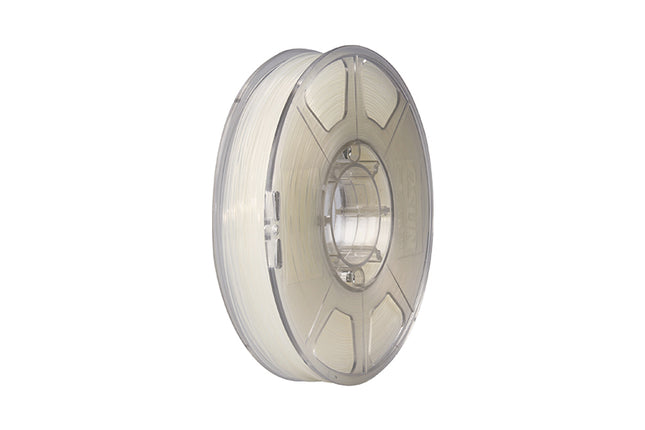

eSUN ePA (Nylon) Filament – High-Strength Nylon Filament
eSUN ePA is developed from Nylon 6/66 Copolymer for 3D printers and is designed for printing engineering parts that require high durability. It has high toughness, up to 175% flexibility, and excellent wear resistance. It is suitable for mechanical parts, gears, or prototypes that need to withstand impact.
Key Features:
-
High Toughness & Impact Resistance: Elongates up to 175% before breaking, good impact resistance, not easy to break.
-
Self-lubricating & Wear Resistant: Self-lubricating properties, suitable for parts that involve friction or movement, such as gears or nuts.
-
Chemical and Heat Resistance: Good resistance to oils, greases, and various chemicals, as well as higher heat resistance than general PLA filaments.
-
High Precision: Diameter deviation not exceeding +/- 0.05mm. Smooth feeding, no tangling, reduces nozzle clogging issues.
-
Transparent: The plastic is translucent, providing a beautiful and smooth finish.
-
Environmentally Friendly: Non-toxic and low odor during printing.
Specifications:
-
Material: Nylon 6/66 Copolymer (Polyamide)
-
Diameter: 1.75 mm (+/- 0.05mm)
-
Weight: 1 kg (per spool)
-
Color: Natural / Transparent
Printing Parameters:
⚠️ Important Tips:
-
Moisture: Nylon is a very hygroscopic material. Always dry the filament thoroughly before printing at 70°C for more than 12 hours. It is recommended to use with a filament dryer box, such as eSUN eBOX, to prevent air bubbles and uneven surface finishes.
-
Adhesion: Nylon often does not stick to bare glass beds. It is necessary to use an adhesive to help with adhesion to prevent the print from peeling or warping.
Physical Performance
Mechanical Properties
-
Tensile Strength: Horizontal (XY) 43.64 MPa / Vertical (Z) 41.46 MPa
-
Elongation at Break: Horizontal (XY) 164.88% / Vertical (Z) 10.77%
-
Flexural Strength: Horizontal (XY) 53.9 MPa / Vertical (Z) 54.2 MPa
-
Flexural Modulus: Horizontal (XY) 1482.73 MPa / Vertical (Z) 1641.81 MPa
-
IZOD Impact Strength: Horizontal (XY) 75.87 kJ/m² / Vertical (Z) 4.44 kJ/m²
Officially Recommended Printing Parameters from eSUN
-
Extruder Temp: 250-290°C
-
Bed Temp: 70-90°C
-
Fan Speed: 0%
-
Print Speed (for fast print mode): Below 150 mm/s
-
Build Plate: Heated Bed Required
-
Filament Drying: Recommended to dry at 70°C for more than 12 hours and print in an Enclosed Chamber.
Industry Applications
-
Aerospace Industry
-
Electrical & Electronics
-
Jigs & Fixtures
-
Automotive Parts
Available Colors
